cunqa.circuit.circuit.CunqaCircuit

class cunqa.circuit.circuit.CunqaCircuit(*args, **kwargs)

Bases: object

Class to define a quantum circuit for the cunqa api.

This class serves as a tool for the user to describe not only simple circuits, but also to describe classical and quantum operations between circuits. On its initialization, it takes as mandatory the number of qubits for the circuit num_qubits), also number of classical bits (num_clbits) and a personalized id (id), which by default would be randomly generated. Once the object is created, class methods canbe used to add instructions to the circuit such as single-qubit and two-qubits gates, measurements, conditional operations,… but also operations that allow to send measurement outcomes or qubits to other circuits. This sending operations require that the virtual QPUs to which the circuits are sent support classical or quantum communications with the desired connectivity.

Supported operations

Single-qubit gates: id(), x(), y(), z(), h(), s(), sdg(), sx(), sxdg(), t(), tdg(), u1(), u2(), u3(), u(), p(), r(), rx(), ry(), rz().

Two-qubits gates: swap(), cx(), cy(), cz(), csx(), cp(), cu(), cu1(), cu3(), rxx(), ryy(), rzz(), rzx(), crx(), cry(), crz(), ecr(),

Three-qubits gates: ccx(), ccy(), ccz(), cswap().

n-qubits gates: unitary().

Non-unitary local operations: c_if(), measure(), measure_all(), reset().

Remote operations for classical communications: measure_and_send(), remote_c_if().

Remote operations for quantum comminications: qsend(), qrecv(), expose(), rcontrol().

Creating your first CunqaCircuit

Start by instantiating the class providing the desired number of qubits:

>>> circuit = CunqaCircuit(2)

Then, gates can be added through the mentioned methods. Let’s add a Hadamard gate and CNOT gates to create a Bell state:

>>> circuit.h(0) # adding hadamard to qubit 0
>>> circuit.cx(0,1)

Finally, qubits are measured by:

>>> circuit.measure_all()

Once the circuit is ready, it is ready to be sent to a QPU by the method run().

Other methods to manupulate the class are:

Method
`from_instructions()`	Class method to add operations to the circuit from a list of dict-type instructions.
`assign_parameters()`	Plugs values into the intructions of parametric gates marked with a parameter name.

Classical communications among circuits

The strong part of CunqaCircuit is that it allows to define communication directives between circuits. We can define the sending of a classical bit from one circuit to another by:

>>> circuit_1 = CunqaCircuit(2)
>>> circuit_2 = CunqaCircuit(2)
>>> circuit_1.h(0)
>>> circuit_1.measure_and_send(0, circuit_2) # qubit 0 is measured and the outcome is sent to circuit_2
>>> circuit_2.remote_c_if("x", 0, circuit_1) # the outcome is recived to perform a classicaly controlled operation
>>> circuit_1.measure_all()
>>> circuit_2.measure_all()

Then, circuits can be sent to QPUs that support classical communications using the run_distributed() function.

Circuits can also be referend to through their id string. When a CunqaCircuit is created, by default a random id is assigned, but it can also be personalized:

>>> circuit_1 = CunqaCircuit(2, id = "1")
>>> circuit_2 = CunqaCircuit(2, id = "2")
>>> circuit_1.h(0)
>>> circuit_1.measure_and_send(0, "2") # qubit 0 is measured and the outcome is sent to circuit_2
>>> circuit_2.remote_c_if("x", 0, "1") # the outcome is recived to perform a classicaly controlled operation
>>> circuit_1.measure_all()
>>> circuit_2.measure_all()

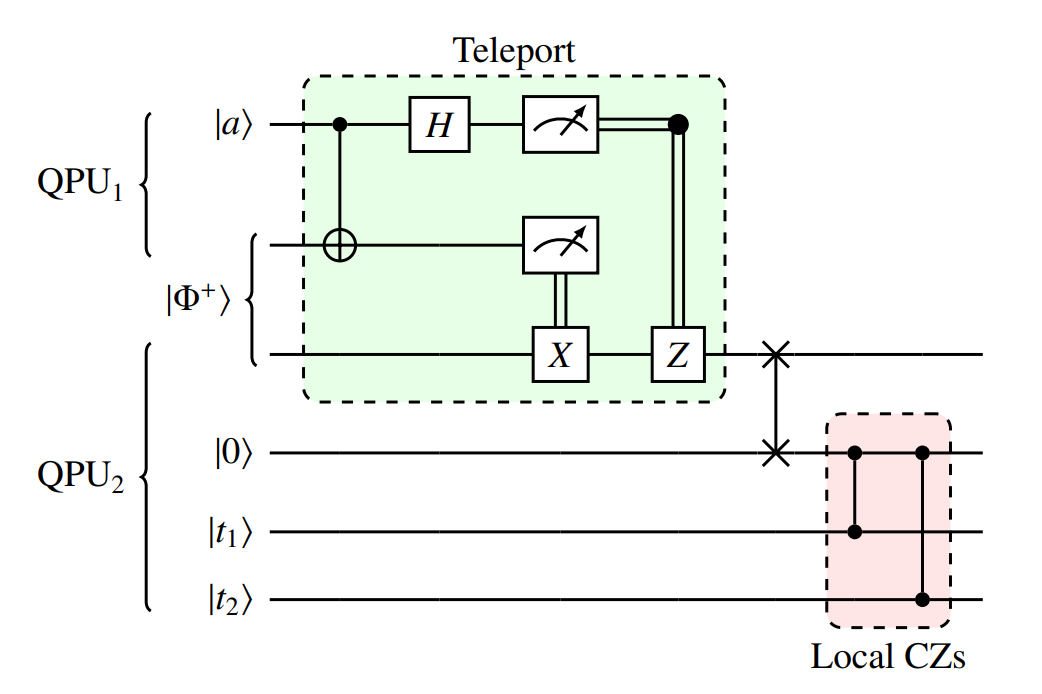

Teledata protocol

The teledata protocol consists on the reconstruction of an unknown quantum state of a given physical system at a different location without actually transmitting the system [#]_. Within cunqa, when quantum communications among the virtual QPUs utilized are available, a qubit from one circuit can be sent to another, the teledata protocol is implemented at a lower level so there is no need for the user to implement it. In this scheme, generally an acilla qubit would be neccesary to recieve the quantum state. Let’s see an example for the creation of a Bell pair remotely:

>>> circuit_1 = CunqaCircuit(2, 1, id = "1")
>>> circuit_2 = CunqaCircuit(2, 2, id = "2")
>>>
>>> circuit_1.h(0); circuit_1.cx(0,1)
>>> circuit_1.qsend(1, "1") # sending qubit 1 to circuit with id "2"
>>> circuit_1.measure(0,0)
>>>
>>> circuit_2.qrecv(0, "2") # reciving qubit from circuit with id "1" and assigning it to qubit 0
>>> circuit_2.cx(0,1)
>>> circuit_2.measure_all()

It is important to note that the qubit used for the communication, the one send, after the operation it is reset, so in a general basis it wouldn’t need to be measured. If we want to send more qubits afer, we can use it since it is reset to zero.

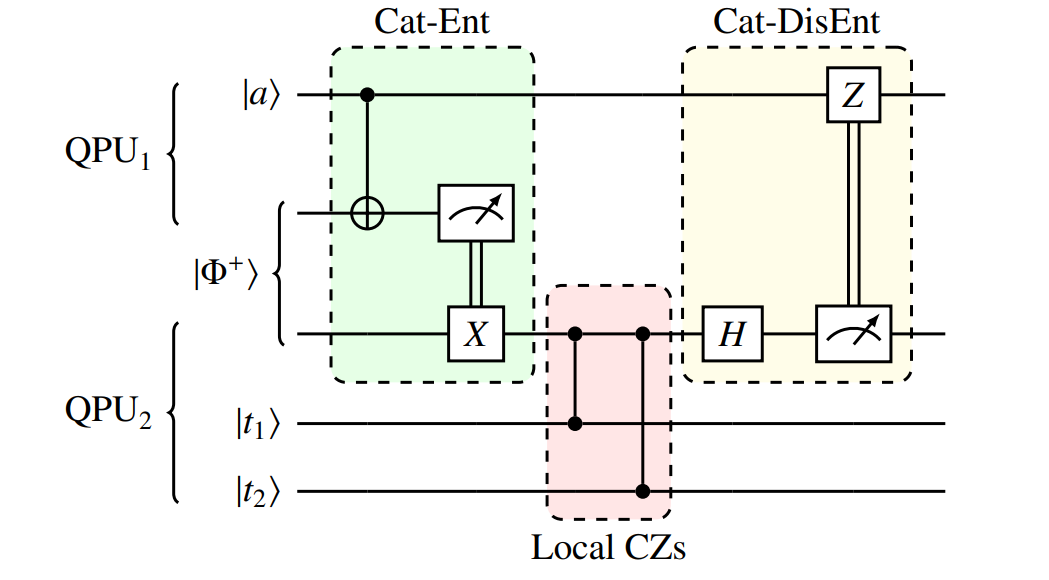

Telegate protocol

Quantum gate teleportation, also known as telegate, reduces the topological requirements by substituting two-qubit gates with other cost-effective resources: auxiliary entangled states, local measurements, and single-qubit operations [#]_. This is another feature available in cunqa in the quantum communications scheme, managed by the ControlContext class. Here is an example analogous to the one presented above:

>>> circuit_1 = CunqaCircuit(2, id = "1")
>>> circuit_2 = CunqaCircuit(1, id = "2")
>>>
>>> circuit_1.h(0); circuit_1.cx(0,1)
>>>
>>> with circuit_1.expose(1, circuit_2) as rcontrol: # exposing qubit at circuit_1
>>>     circuit_2.cx(rcontol, 1) # applying telegate operation controlled by the exposed qubit
>>>
>>> circuit_1.measure_all()
>>> circuit_2.measure_all()

Here there is no need for an ancilla since the control is the exposed qubit from the other circuit/virtual QPU.

Warning

Note that the circuit specification in CunqaCircuit.expose() cannot be done by passing the circuit CunqaCircuit.id since the ControlContext object needs the CunqaCircuit object in order to manage the telegate block.

References:

[#] Review of Distributed Quantum Computing. From single QPU to High Performance Quantum Computing

Attributes

`info`	Information about the main class attributes given as a dictinary.
`layers`	Dictionary with keys the qubits and values lists of sublists with elements [layer_number, index_of_gate_in_instructions, gate_name].
`num_clbits`	Number of classical bits of the circuit.
`num_qubits`	Number of qubits of the circuit.
`is_parametric`	Weather the circuit contains parametric gates.
`has_cc`	Weather the circuit contains classical communications with other circuit.
`has_qc`	Weather the circuit contains quantum communications with other circuit.
`is_dynamic`	Weather the circuit has local non-unitary operations.
`instructions`	Set of operations applied to the circuit.
`quantum_regs`	Dictionary of quantum registers as `{"name": [assigned qubits]}`.
`classical_regs`	Dictionary of classical registers of the circuit as `{"name": [assigned clbits]}`.
`sending_to`	List of circuit ids to which the current circuit is sending measurement outcomes or qubits.

Methods

CunqaCircuit.__init__(num_qubits: int | None = None, num_clbits: int | None = None, id: str | None = None)

Class constructor to create a CunqaCirucit. Only the num_qubits argument is mandatory, also num_clbits can be provided if there is intention to incorporate intermediate measurements. If no id is provided, one is generated randomly, then it can be accessed through the class attribute _id.

Parameters:

num_qubits (int) – Number of qubits of the circuit.
num_clbits (int) – Numeber of classical bits for the circuit. A classical register is initially added.
id (str) – Label for identifying the circuit. This id is then used for refering to the circuit in classical and quantum communications methods.

CunqaCircuit.c_if(gate: str, control_qubit: int, target_qubit: int, param: float | None = None, matrix: list[list[list[complex]]] | None = None) → None

Method for implementing a gate contiioned to a classical measurement. The control qubit provided is measured, if it’s 1 the gate provided is applied to the given qubits.

For parametric gates, only one-parameter gates are supported, therefore only one parameter must be passed.

The gates supported by the method are the following: h, x, y, z, rx, ry, rz, cx, cy, cz, unitary.

To implement the conditioned uniraty gate, the corresponding matrix should be passed by the matrix argument.

Parameters:

gate (str) – gate to be applied. Has to be supported by CunqaCircuit.
control_qubit (int) – control qubit whose classical measurement will control the execution of the gate.
target_qubit (int | list[int]) – list of qubits or qubit to which the gate is intended to be applied.
param (float | int) – parameter for the case parametric gate is provided.
matrix (list | numpy.ndarray) – unitary operator in matrix form to be applied to the given qubits.

CunqaCircuit.ccx(*qubits: int) → None

Class method to apply ccx gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied, first two will be control qubits and the following one will be target qubit.

CunqaCircuit.ccy(*qubits: int) → None

Class method to apply ccy gate to the given qubits. Gate is decomposed asfollows as it is not commonly supported by simulators. q_0: ──────────────■─────────────

│

q_1: ──────────────■─────────────: ┌──────────┐┌─┴─┐┌─────────┐
q_2: ┤ Rz(-π/2) ├┤ X ├┤ Rz(π/2) ├: └──────────┘└───┘└─────────┘

Parameters:: qubits (int) – qubits in which the gate is applied, first two will be control qubits and the following one will be target qubit.

CunqaCircuit.ccz(*qubits: int) → None

Class method to apply ccz gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied, first two will be control qubits and the following one will be target qubit.

CunqaCircuit.cp(param: float | int | str, *qubits: int) → None

Class method to apply cp gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied, first one will be the control qubit and second one the target qubit.

CunqaCircuit.crx(param: float | int | str, *qubits: int) → None

Class method to apply crx gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied, first one will be the control qubit and second one the target qubit.

CunqaCircuit.cry(param: float | int | str, *qubits: int) → None

Class method to apply cry gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied, first one will be the control qubit and second one the target qubit.

CunqaCircuit.crz(param: float | int | str, *qubits: int) → None

Class method to apply crz gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied, first one will be the control qubit and second one the target qubit.

CunqaCircuit.cswap(*qubits: int) → None

Class method to apply cswap gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied, first two will be control qubits and the following one will be target qubit.

CunqaCircuit.csx(*qubits: int) → None

Class method to apply csx gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied, first one will be control qubit and second one target qubit.

CunqaCircuit.cu(theta: float | int | str, phi: float | int | str, lam: float | int | str, gamma: float | int | str, *qubits: int) → None

Class method to apply cu gate to the given qubits.

Parameters:

theta (float | int) – angle.
phi (float | int) – angle.
lam (float | int) – angle.
gamma (float | int) – angle.
qubits (int | list[int]) – qubits in which the gate is applied, first one will be the control qubit and second one the target qubit.

CunqaCircuit.cu1(param: float | int | str, *qubits: int) → None

Class method to apply cu1 gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied, first one will be the control qubit and second one the target qubit.

CunqaCircuit.cu3(theta: float | int | str, phi: float | int | str, lam: float | int | str, *qubits: int) → None

Class method to apply cu3 gate to the given qubits.

Parameters:

theta (float | int) – angle.
phi (float | int) – angle.
lam (float | int) – angle.
qubits (int) – qubits in which the gate is applied, first one will be the control qubit and second one the target qubit.

CunqaCircuit.cx(*qubits: int) → None

Class method to apply cx gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied, first one will be control qubit and second one target qubit.

CunqaCircuit.cy(*qubits: int) → None

Class method to apply cy gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied, first one will be control qubit and second one target qubit.

CunqaCircuit.cz(*qubits: int) → None

Class method to apply cz gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied, first one will be control qubit and second one target qubit.

CunqaCircuit.divide_instr(instr: dict, upper_circuit: CunqaCircuit, lower_circuit: CunqaCircuit, n: int, iterator_instructions: list_iterator, received: bool = False, recv_remain: int = 0)

Method to divide an instruction between the upper and lower circuits in hor_split. If given the instructions “recv” or “rcontrol” it calls itself on the next value of the iterator or on the first element of instr[“instructions”], respectively. This recurrence makes it less readable. Additionally, only instructions that fall squarely on one side are supported on “recv” and “rcontrol” as otherwise they would need a mix of classical and quantum communications or multicontrolled communications with control qubits on different circuits.

Parameters:

instr (dict) – the dictionary describing the instruction to divide
upper_circuit (CunqaCircuit)
lower_circuit (CunqaCircuit)
n (int) – the number of qubits of the upper_circuit (maybe return the divided instructions and remove the circuits from the arguments)
iterator_instructions (list_iterator) – iterator from the list of instructions. Allows the “recv” case to access the next instruction
received (bool) – determines wether ‘divide_instr’ is being called from within (True), in a received case or from ‘hor_split’ (False).
recv_remain (int) – determines the lenght of instr[“instructions”] in the “rcontrol” case to handle recurrence and avoid an infinte loop.

CunqaCircuit.ecr(*qubits: int) → None

Class method to apply ecr gate to the given qubits.

Parameters:: qubits (int) – qubits in which the gate is applied.

CunqaCircuit.expose(qubit: int, target_circuit: str | CunqaCircuit) → ControlContext

Class method to expose a qubit from the current circuit to another one for a telegate operation. The exposed qubit will be used at the target circuit as the control qubit in controlled operations.

Parameters:

qubit (int) – qubit to be exposed.
target_circuit (str | CunqaCircuit) – id of the circuit or circuit where the exposed qubit is used.

Returns:

A ControlContext object to manage remotly controlled operations in the given circuit.

Warning

In the current version, expose() instruction is only supported for MQT DDSIM (Munich) simulator. If circuits with such instructions are sent to other simulators, an error will occur at the virtual QPU.

CunqaCircuit.from_instructions(instructions: list[dict])

Class method to add operations to the circuit from a list of dict-type instructions.

Each instruction must have as mandatory keys "name" and "qubits", while other keys are accepted: "clbits", "params", "circuits" or "remote_conditional_reg".

Parameters:: instructions (list[dict]) – list gathering all the each instruction as a dict.

CunqaCircuit.h(qubit: int) → None

Class method to apply h gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.hor_split(n: int) → Tuple[CunqaCircuit, CunqaCircuit]: Divides a circuit horizontally in two, separating the first n qubits from the last num_qubits-n qubits.

CunqaCircuit.id(qubit: int) → None

Class method to apply id gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.index(gate, multiple=False)

Method to determine the position of a certain gate.

Args: gate (str, dict): gate to be found multiple (bool): option to return the position of all instances of the gate on the circuit instead of just the first one.
Returns: index (int, list[int]): position of the gate (index on the list self.instructions)

CunqaCircuit.measure(qubits: int | list[int], clbits: int | list[int]) → None

Class method to add a measurement of a qubit or a list of qubits and to register that measurement in the given classical bits.

Parameters:

qubits (int | list[int]) – qubits to measure.
clbits (int | list[int]) – clasical bits where the measurement will be registered.

CunqaCircuit.measure_all() → None: Class to apply a global measurement of all of the qubits of the circuit. An additional classcial register will be added and labeled as “measure”.

CunqaCircuit.measure_and_send(qubit: int, target_circuit: str | CunqaCircuit) → None

Class method to measure and send a bit from the current circuit to a remote one.

Parameters:

qubit (int) – qubit to be measured and sent.
target_circuit (str | CunqaCircuit) – id of the circuit or circuit to which the result of the measurement is sent.

CunqaCircuit.multicontrol(base_gate: str, num_ctrl_qubits: int, qubits: list[int], params: list[float, int] = [])

Class method to apply a multicontrolled gate to the given qubits.

Parameters:

base_gate (str) – name of the gate to convert to multicontrolled.
num_ctrl_qubits (int) – number of qubits that control the gate.
qubits (list[int]) – qubits in which the gate is applied, first num_ctrl_qubits will be the control qubits and the remaining the target qubits.
params (list[float | int | Parameter]) – list of parameters for the gate.

Warning

This instructions is currently only supported for Aer simulator.

CunqaCircuit.p(param: float | int | str, qubit: int) → None

Class method to apply p gate to the given qubit.

Parameters:

param (float | int) – parameter for the parametric gate.
qubit (int) – qubit in which the gate is applied.

CunqaCircuit.process_instrs(union_circuit: CunqaCircuit, iter_this_instr: list_iterator, iter_other_instr: list_iterator, this_id: str, other_id: str, n: int, cl_n: int, m: int, cl_m: int, displace: bool)

Function that goes through iter_this_instr processing its instructions and adding them to union_circuit. If a quantum communication (between self and other) is found, we need to go through iter_other_instr until we can retrieve the second half of the quantum communication information to susbtitute it fo a local gate. We use recurrence for this, calling process_instrs on (iter_other_instr, iter_this_instr). To unify both cases, we have the argument displace which indicates wether we’re in the up or down (False or True) side of the union.

Parameters:

union_circuit (CunqaCircuit) – Circuit to house the union of the other circuits
iter_this_instr (list_iterator) – we should receive iter(copy.deepcopy(circuit.instructions))) of the desired circuit to traverse
iter_other_instr (list_iterator) – iterator analogous to iter_this_instr but from the other circuit of the union, where we can search for the second half of any internal quantum communication.
this_id (str) – id of the circuit being traversed
other_id (str) – id of the other piece of the union
n (int) – number of qubits of the upper circuit
cl_n (int) – number of cl_bits of the upper circuit
m (int) – number of qubits of the down circuit
cl_m (int) – number of cl_bits of the down circuit
displace (bool) – determines wether we’re looping through the instructions of the lower_circuit (True) or of the upper_circuit (False)

CunqaCircuit.qrecv(qubit: int, control_circuit: str | CunqaCircuit) → None

Class method to send a qubit from the current circuit to a remote one.

Parameters:

qubit (int) – ancilla to which the received qubit is assigned.
control_circuit (str | CunqaCircuit) – id of the circuit from which the qubit is received.

CunqaCircuit.qsend(qubit: int, target_circuit: str | CunqaCircuit) → None

Class method to send a qubit from the current circuit to another one.

Parameters:

qubit (int) – qubit to be sent.
target_circuit (str | CunqaCircuit) – id of the circuit or circuit to which the qubit is sent.

CunqaCircuit.r(theta: float | int | str, phi: float | int | str, qubit: int) → None

Class method to apply r gate to the given qubit.

Parameters:

theta (float | int) – angle.
phi (float | int) – angle.
qubit (int) – qubit in which the gate is applied.

Class method to apply a distributed instruction as a gate condioned by a non local classical measurement from a remote circuit and applied locally.

The gates supported by the method are the following: h, x, y, z, rx, ry, rz, cx, cy, cz, unitary.

To implement the conditioned uniraty gate, the corresponding matrix should be passed by the param argument.

Parameters:

gate (str) – gate to be applied. Has to be supported by CunqaCircuit.
target_qubits (int | list[int]) – qubit or qubits to which the gate is conditionally applied.
param (float | int) – parameter in case the gate provided is parametric.
control_circuit (str | CunqaCircuit) – id of the circuit or circuit from which the condition is sent.

CunqaCircuit.reset(qubits: int | list)

Class method to add reset to zero instruction to a qubit or list of qubits (use after measure).

Parameters:: qubits (int) – qubits to which the reset operation is applied.

CunqaCircuit.rx(param: float | int | str, qubit: int) → None

Class method to apply rx gate to the given qubit.

Parameters:

param (float | int) – parameter for the parametric gate.
qubit (int) – qubit in which the gate is applied.

CunqaCircuit.rxx(param: float | int | str, *qubits: int) → None

Class method to apply rxx gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied.

CunqaCircuit.ry(param: float | int | str, qubit: int) → None

Class method to apply ry gate to the given qubit.

Parameters:

param (float | int) – parameter for the parametric gate.
qubit (int) – qubit in which the gate is applied.

CunqaCircuit.ryy(param: float | int | str, *qubits: int) → None

Class method to apply ryy gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied.

CunqaCircuit.rz(param: float | int | str, qubit: int) → None

Class method to apply rz gate to the given qubit.

Parameters:

param (float | int) – parameter for the parametric gate.
qubit (int) – qubit in which the gate is applied.

CunqaCircuit.rzx(param: float | int | str, *qubits: int) → None

Class method to apply rzx gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied.

CunqaCircuit.rzz(param: float | int | str, *qubits: int) → None

Class method to apply rzz gate to the given qubits.

Parameters:

param (float | int) – parameter for the parametric gate.
qubits (int) – qubits in which the gate is applied.

CunqaCircuit.s(qubit: int) → None

Class method to apply s gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.sdg(qubit: int) → None

Class method to apply sdg gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

classmethod CunqaCircuit.sum(iterable, *, start=<cunqa.circuit.circuit.CunqaCircuit object>, force_execution=False, inplace=False)

Custom sum function that supports additional arguments

Parameters:

iterable – Circuits to sum
start – Starting value (default CunqaCircuit(0, id = “Empty”))
force_execution – Optional argument to pass to __add__()

CunqaCircuit.swap(*qubits: int) → None

Class method to apply swap gate to the given qubits.

Parameters:: qubits (list[int]) – qubits in which the gate is applied.

CunqaCircuit.sx(qubit: int) → None

Class method to apply sx gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.sxdg(qubit: int) → None

Class method to apply sxdg gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.t(qubit: int) → None

Class method to apply t gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.tdg(qubit: int) → None

Class method to apply tdg gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.u(theta: float | int | str, phi: float | int | str, lam: float | int | str, qubit: int) → None

Class method to apply u gate to the given qubit.

Parameters:

theta (float | int) – angle.
phi (float | int) – angle.
lam (float | int) – angle.
qubit (int) – qubit in which the gate is applied.

CunqaCircuit.u1(param: float | int | str, qubit: int) → None

Class method to apply u1 gate to the given qubit.

Parameters:

param (float | int | str) – parameter for the parametric gate. String identifies a variable parameter (needs to be assigned) with the string label.
qubit (int) – qubit in which the gate is applied.

CunqaCircuit.u2(theta: float | int | str, phi: float | int | str, qubit: int) → None

Class method to apply u2 gate to the given qubit.

Parameters:

theta (float | int) – angle.
phi (float | int) – angle.
qubit (int) – qubit in which the gate is applied.

CunqaCircuit.u3(theta: float | int | str, phi: float | int | str, lam: float | int | str, qubit: int) → None

Class method to apply u3 gate to the given qubit.

Parameters:

theta (float | int) – angle.
phi (float | int) – angle.
lam (float | int) – angle.
qubit (int) – qubit in which the gate is applied.

classmethod CunqaCircuit.union(instances)

CunqaCircuit.unitary(matrix: list[list[list[complex]]], *qubits: int) → None

Class method to apply a unitary gate created from an unitary matrix provided.

Parameters:

matrix (list | numpy.ndarray) – unitary operator in matrix form to be applied to the given qubits.
qubits (int) – qubits to which the unitary operator will be applied.

CunqaCircuit.vert_split(position: int) → Tuple[CunqaCircuit, CunqaCircuit]: Divides a circuit vertically in two, separating all instructions up to and after a certain layer.

CunqaCircuit.x(qubit: int) → None

Class method to apply x gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.y(qubit: int) → None

Class method to apply y gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.

CunqaCircuit.z(qubit: int) → None

Class method to apply z gate to the given qubit.

Parameters:: qubit (int) – qubit in which the gate is applied.
