Quantum Communication

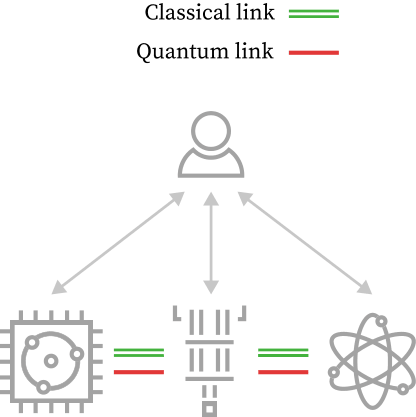

This is the one paradigm that does not have a classical counterpart, since it is purely quantum distribution.

In this scheme quantum communication protocols such as teledata and telegate can be use to share quantum entanglement among the states in each QPU involved.

How to deploy

To lauch a set of vQPUs incorporating quantum communications among them, you must use the flag --quantum-comm when deploying.

Bash command

qraise -n <num qpus> -t <max time> --quantum-comm [OTHER]

Python function

family = qraise(4, <max time>, quantum_comm=True, [OTHER])

The above command line launches vQPUs with all-to-all quantum communications connectivity. For additional options in the Bash command checkout qraise, and check qraise for the Python function. Again, it is recomended to use the --co-located flag (and co_located attribute in Python), as it allows to access the vQPUs from every node, not just the one the vQPUs are being set up. In this documentation we are going to consider that this flag is set.

Circuits design

CUNQA allows the implementation of teledata and telegate protocols among circuits. In order to do this, and in a similar manner than with the classical comunnications model, several steps must be followed.

Creating both circuits and adding the desired operations on them:
circuit_1 = CunqaCircuit(num_qubits=2, num_clbits=2, id="circuit_1")

circuit_1.h(0)

circuit_2 = CunqaCircuit(num_qubits=2, num_clbits=2, id="circuit_2")

circuit_2.x(1)
Implementing the quantum communication:
Teledata
This protocol is similar to the classical communication directive but instead of sending a bit, here we teleport a quantum state. Even though in CUNQA we implement it in a friendlier way, the behind of scene of the protocol looks like the following:

where the state a at the first QPU is teleported to the first qubit of the second QPU. Here we see that a requirement is for the QPUs to share a Bell pair.

At circuit level whithin CUNQA, class methods qsend and qrecv are designed for this purpose:
circuit_1.qsend(qubit=0, sending_circuit="circuit_2")

circuit_2.qrecv(qubit=0, recving_circuit="circuit_1")
Here the state of qubit 0 at circuit_1 is teleported to qubit 0 at circuit_2. The origin qubit is then set to state 0. Then, we can continue to add instructions to both circuits.
Telegate
This protocol consists in exposing a qubit at one QPU to another for performing multiple-qubits gates across QPUs. The protocol itself consists in the following:

Here the quantum state a at the first QPU is participating in local operations at the other QPU. We notice that a requirement is for the QPUs to share a Bell pair.

Its circuit implementation at CUNQA begins by exposing the control qubit whithin a control context provided by the expose method that returns a QuantumControlContext for representing the remote qubit and a subcircuit to which the controlled instructions are applied:
with circuit_1.expose(qubit=0, target_circuit="circuit_2") as rqubit, subcircuit:
    subcircuit.cx(rqubit, 1)
This way, qubit 0 at circuit_1 is participating in the cx two-qubit gate together with qubit 1 at circuit_2.

Execution

We obtain the QPU objects associated to the displayed vQPUs through get_QPUs, same as with the other methods. It is important that those allow quantum communications, otherwise an error will be raised. When quantum communications are available, classical-communication directives are also permited at circuits.

For the distribution, function run is used. By providing the list of circuits and the list of QPU objects we allow their mapping to the corresponding vQPUs:

qpus_list = get_QPUs(family=family, co_located=True)

distributed_qjobs = run([circuit_1, circuit_2], qpus_list, shots = 1024)

We can call for the results by the gather function, passing the list of QJob objects:

results = gather(distributed_qjobs)

For quantum communications simulation, the vQPUs deployed actually share a conjunt simulator, therefore the call for results is a blocking call that waits for the whole simulation to be over. Simulation time and output statistics can be accessed by

times_list = [result.time_taken for result in results]

counts_list = [result.counts for result in results]

Basic example

Here we show two examples of implementing the remote construction of a three-qubit entangled state by teledata and telegate. Further examples and use cases are listed in Further examples.

Teledata

import os, sys
# In order to import cunqa, we append to the search path the cunqa installation path.
# In CESGA, we install by default on the $HOME path as $HOME/bin is in the PATH variable
sys.path.append(os.getenv("HOME"))

from cunqa.qpu import get_QPUs, qraise, qdrop, run
from cunqa.circuit import CunqaCircuit
from cunqa.qjob import gather

# 1. QPU deployment

family_name = qraise(2, "01:00:00", quantum_comm=True, family_name = "qpus_quantum_comms")
qpus = get_QPUs(family = family_name)

# 2. Circuit design

circuit_1 = CunqaCircuit(2, id="circuit_1")
circuit_2 = CunqaCircuit(2, id="circuit_2")

circuit_1.h(0)
circuit_1.cx(0,1)

# -------------- Teledata! ------------
circuit_1.qsend(1, "circuit_2")
circuit_2.qrecv(0, "circuit_1")
# -------------------------------------

circuit_2.cx(0,1)

circuit_1.measure_all()
circuit_2.measure_all()

# 3. Execution

qjobs = run([circuit_1, circuit_2], qpus, shots=1000)
results = gather(qjobs)
counts_list = [result.counts for result in results]

for counts, qpu in zip(counts_list, qpus):

    print(f"Counts from vQPU {qpu.id}: {counts}")

qdrop(family_name)

Telegate

import os, sys
# In order to import cunqa, we append to the search path the cunqa installation path.
# In CESGA, we install by default on the $HOME path as $HOME/bin is in the PATH variable
sys.path.append(os.getenv("HOME"))

from cunqa.qpu import get_QPUs, qraise, qdrop, run
from cunqa.circuit import CunqaCircuit
from cunqa.qjob import gather

# 1. QPU deployment

family_name = qraise(2, "01:00:00", quantum_comm=True, family_name = "qpus_quantum_comms")
qpus = get_QPUs(family = family_name)

# 2. Circuit design

circuit_1 = CunqaCircuit(2, id="circuit_1")
circuit_2 = CunqaCircuit(1, id="circuit_2")

circuit_1.h(0)
circuit_1.cx(0,1)


# -------------------------- Telegate! -------------------------
with circuit_1.expose(1, "circuit_2") as (rqubit, subcircuit):
    subcircuit.cx(rqubit, 0)
# --------------------------------------------------------------

circuit_1.measure_all()
circuit_2.measure_all()

# 3. Execution

qjobs = run([circuit_1, circuit_2], qpus, shots=1000)
results = gather(qjobs)
counts_list = [result.counts for result in results]

for counts, qpu in zip(counts_list, qpus):

    print(f"Counts from vQPU {qpu.id}: {counts}")

qdrop(family_name)
